Acrison's heavy-duty Model 105 and 140 Series Volumetric Feeders for dry solids feature a unique dissimilar-speed, double concentric auger metering mechanism, engineered to accurately and reliably meter a wide variety of dry solid materials. The mechanism consists of a large conditioning auger, also called an intromitter, concentrically mounted around a smaller, slower-rotating metering auger. A single variable-speed gearmotor drives both augers at a fixed speed ratio to each other.
Features/Benefits
- Unique Dissimilar Speed, Double Concentric Metering Mechanism
conditions material to a consistent state while efficiently and reliably filling the metering auger from a full 360° - Common Drive Network
mechanically links the slower-speed conditioning auger with the metering auger via a single variable-speed AC or DC gearmotor. - All Steel Construction
delivers long-term durability with minimal maintenance - Wide Range of Model Sizes
covers feed rates from 0.0012 to 3,400 ft3/hr
- All contact parts are 304 stainless steel, including the drive shafts and seal components
- Variable-speed AC or DC gearmotor drive, with a 30:1 or 50:1 speed range
- Various materials of construction
- Sanitary construction to comply with USDA and FDA codes and requirements
- High-temperature and high-pressure construction
- Quick-disconnect construction for ease of cleanout
- Various AC and DC variable-speed motor controllers and control modes
- Available as the integral metering mechanism for certain Acrison Weight-Loss Weigh Feeder models
- 0.0012 to 3,400 ft3/hr

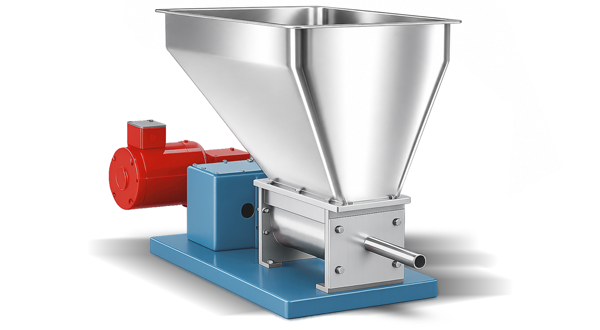

Model 105

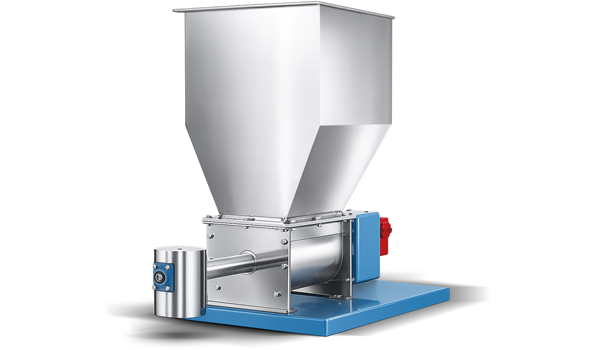

Model 105Z
Model 140-0
Model 140-1
