Acrison's ruggedly built Model 101 and 130 Series Volumetric Feeders are designed to accurately and dependably meter free-flowing granular or pelletized dry solid ingredients.
Features/Benefits
- Single Auger Metering Mechanism
designed for free-flowing dry solid granular type materials - All Steel Construction
provides long-term durability with minimal maintenance requirements - Self-Emptying Design
for easy cleanout - Wide Range of Model Sizes
for feed rates from 0.0012 to 3,400 ft3/hr
- All contact parts are 304 stainless steel including the feeder's drive shaft and seal components
- Variable speed AC or DC gearmotor drive with either a 30:1 or 50:1 speed range
- Various materials of construction
- Sanitary construction to comply with USDA and FDA codes and requirements
- High temperature and pressure construction
- Quick-disconnect construction for ease-of-cleanout
- Available as the integral metering mechanisms for certain model Acrison "Weight-Loss" Weigh Feeders
- Various AC and DC variable speed motor controllers and control modes (see below)
- Variable Frequency Motor Controllers
- Variable Speed SCR-DC Motor Controllers - Models 040 and 060
- Model 800 Flow/No Flow Sensor and Model 800A Flow/No Flow Controller
- 0.0012 to 3,400 ft3/hr
- Self emptying
- Free-flowing dry solid granular materials

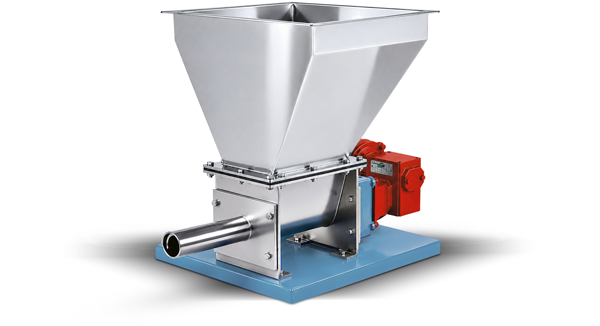

Model 101-0

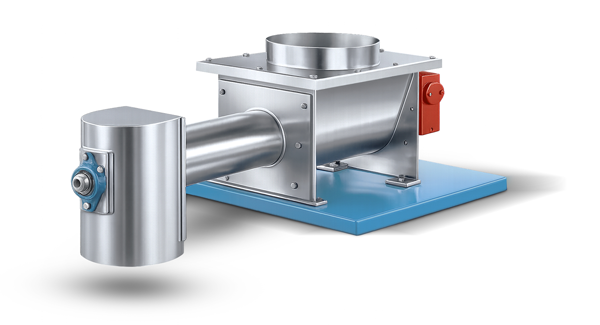

Model 130-1
